3D model description

Ballasted Train Tracks - Dragon Railway

- S - Scale (1/64)

- 22.5mm size (Standard gauge)

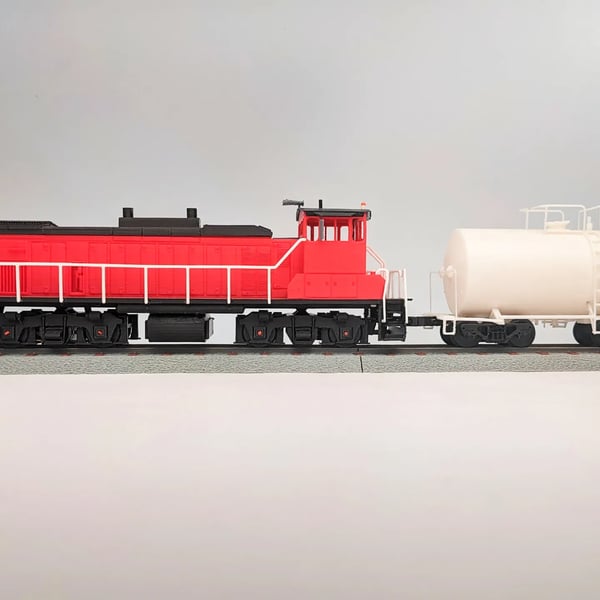

The ballasted train tracks are a part of the Dragon Railway

Check Our Youtube Video

https://youtu.be/_VaP2Fk8B50

Recommended Radius : Minimum 400mm

Whats included:

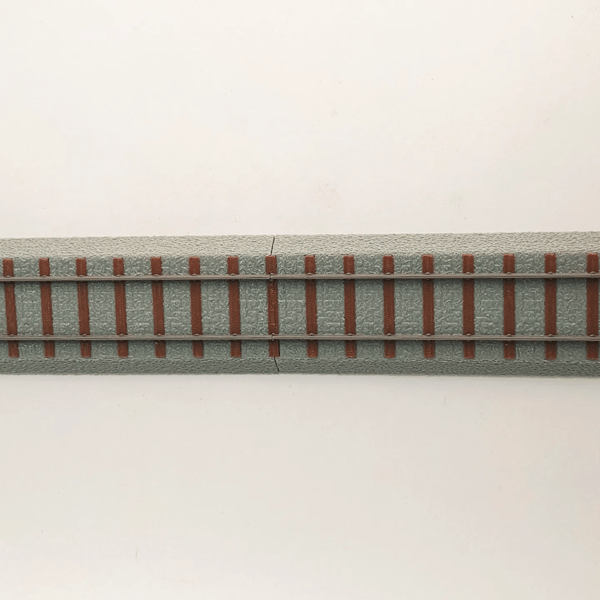

Straight tracks

- 50mm

- 100mm

- 150mm

- 200mm

- 250mm

- 300mm

Curved tracks

- Radius 300mm - 7.5°,15°,22.5°,30°, 45°

- Radius 350mm - 7.5°,15°,22.5°,30°

- Radius 400mm - 7.5°,15°,22.5°,30°

- Radius 500mm - 5°,7.5°,10°,15°,22.5°,30°

- Radius 600mm - 5°,7.5°,10°,15°,22.5°

- Radius 700mm - 5°,7.5°,10°,15°,22.5°

- Radius 800mm - 5°,7.5°,10°,15°

- Radius 1000mm - 5°,7.5°,10°,15°

Crossings

- Crossing L100mm 30°

- Crossing L100mm 90°

Turnouts

- Single - R400 30°

- Single - R500 30°

- Single - R600 22.5°

- Split - R400 22.5°

- Split - R500 22.5°

- Split - R600 17.5°

Assembly manual:

- Google Docs

Check out the Dragon Railway ecosystem!

Join our Discord

Ballast effect derived from TeachingTechs technique

3D printing settings

Orca Files (or)

Load files as single object with multiple parts

Global (Track) Settings:

- Layer Height - 0.2mm

- Walls - 2

- Top Layers - 4

- Bottom Layers - 2

- Infill - 8% Gyroid

Modifier (Ballast) Settings:

- Fuzzy skin - Contour

- Fuzzy skin noise type - Billow

- Fuzzy skin point distance - 0.5mm

- Fuzzy skin thickness -0.5mm

- Top Surface - Only one wall

- Top surface line width - 0.6mm

- Top surface flow ratio - 2

- Top surface pattern - Hilbert curve
