Description

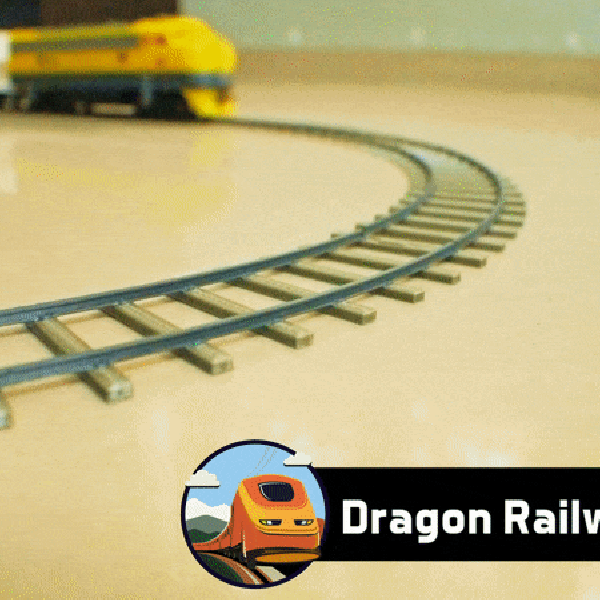

Train Tracks - Dragon Railway
- S - Scale (1/64)
- 22.5mm size (Standard gauge)
The train tracks are a part of the Dragon Railway
Check Our Youtube Video
https://www.youtube.com/watch?v=SFDSUE1-vPA
Recommended Radius : Minimum 400mm

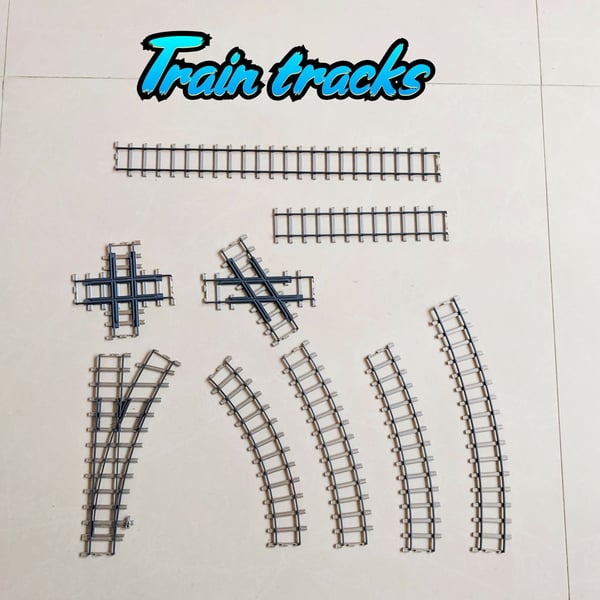

Whats included:
Straight tracks
- 50mm
- 100mm
- 150mm
- 200mm
- 250mm
- 300mm
Curved tracks
- Radius 300mm - 7.5°,15°,22.5°,30°, 45°
- Radius 350mm - 7.5°,15°,22.5°,30°
- Radius 400mm - 7.5°,15°,22.5°,30°
- Radius 500mm - 5°,7.5°,10°,15°,22.5°,30°
- Radius 600mm - 5°,7.5°,10°,15°,22.5°
- Radius 700mm - 5°,7.5°,10°,15°,22.5°
- Radius 800mm - 5°,7.5°,10°,15°
- Radius 1000mm - 5°,7.5°,10°,15°
Crossings
- Crossing L100mm 30°
- Crossing L100mm 90°

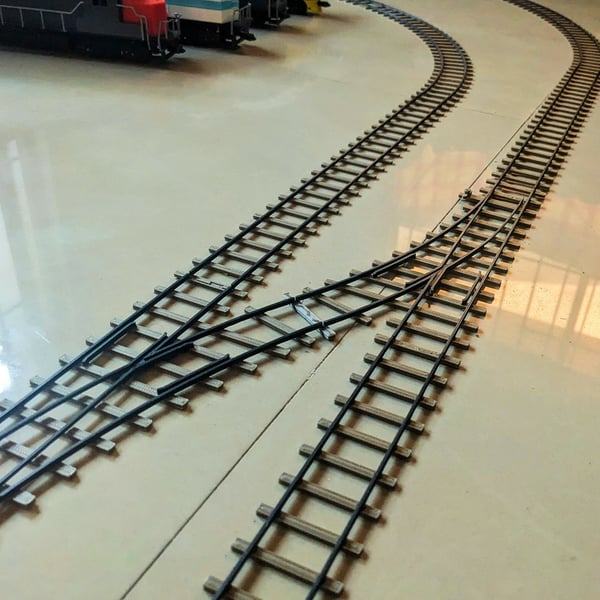

Turnouts
- Single - R400 30°
- Single - R500 22.5°
- Single - R600 22.5°
- Split - R400 22.5°
- Split - R500 22.5°
- Split - R600 15°
Assembly manual:
Check out the Dragon Railway ecosystem!
Join our Discord
3D printing settings
- Layer Height - 0.2mm
- Wall Thickness - 0.8mm
- Top Thickness - 0.8mm
- Bottom Thickness - None
- Infill - None
- Bridging Enabled
- Colling 100% -2 Skirt Lines With 0mm Distance
