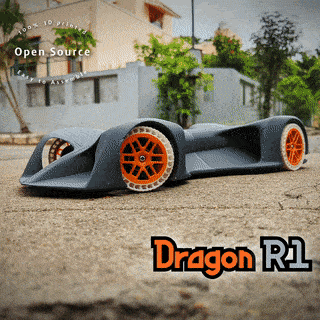

Dragon R1 - An RC race car that's simple and easy to build

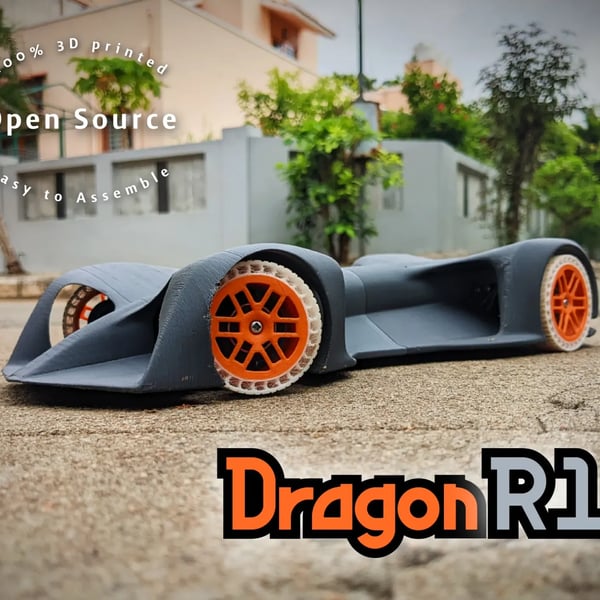

Features of this Open Source car:

• Maximum 3D printed parts

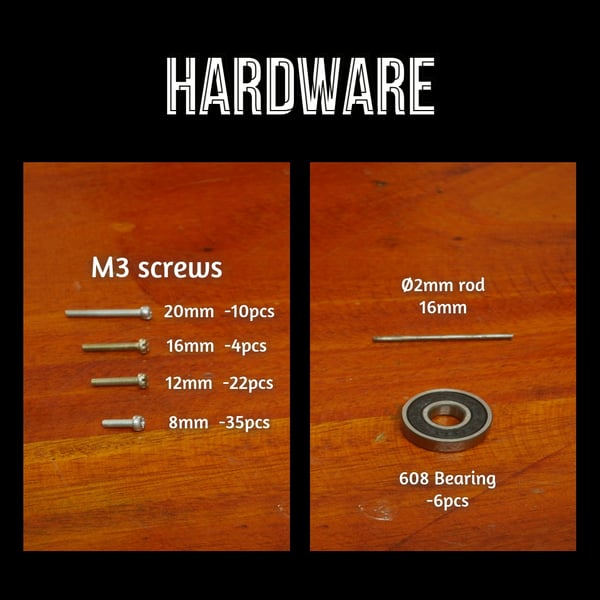

• Easy to source hardware
• Simple Assembly
• Easy maintenance and battery access
• Dual wishbone suspension

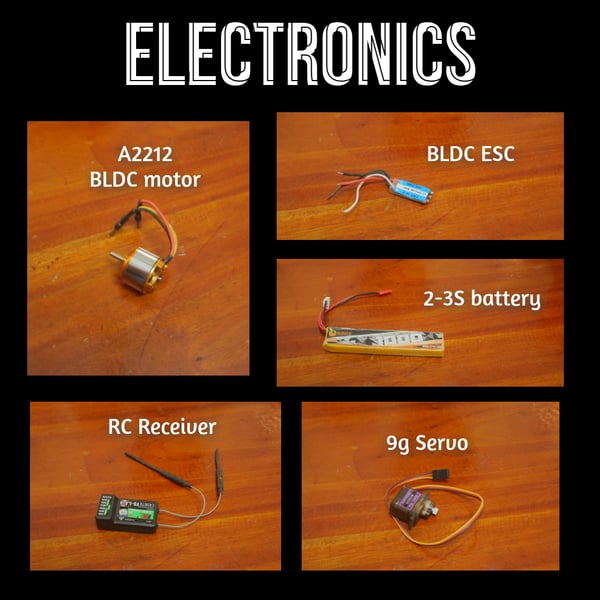

• Open differential
• Low noise drive (using Blheli ESC)
• Printable with a 200mm size printer

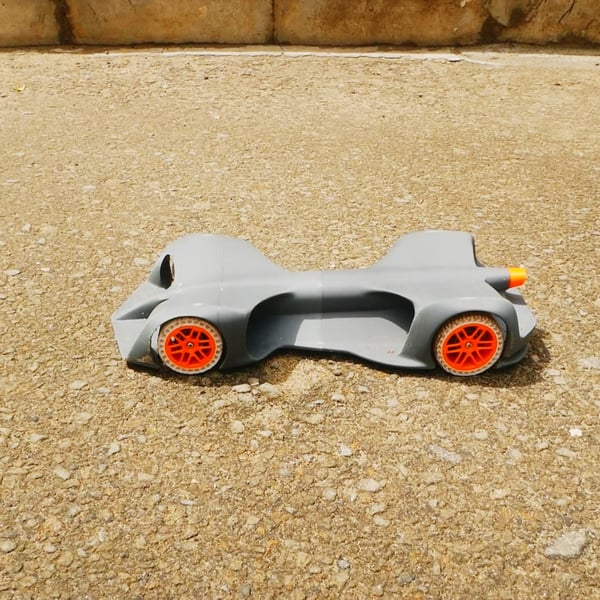

Model is 1/12 scale;

• length: 396mm
• width: 164mm
• height: 71mm

The assembly process is divided into 3 main parts:

https://youtu.be/FiOJ_alnoYA

1) Rear chassis

- Rear axle

- Differential

- Rear Suspension

2) Front chassis

- Steering mechanism

- Front suspension

3) Body assembly

- Base chassis

- Body

Check out our Instructables

Remix Collection: Dragon R1 & Remixes

Update notes:

- The design has been updated now, It is slightly different from the one shown in video.

Join our Discord

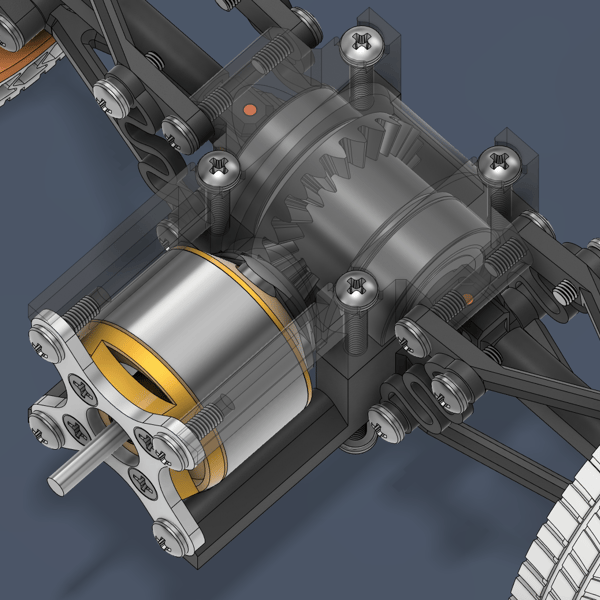

3D View:

Fusion 360 3D View

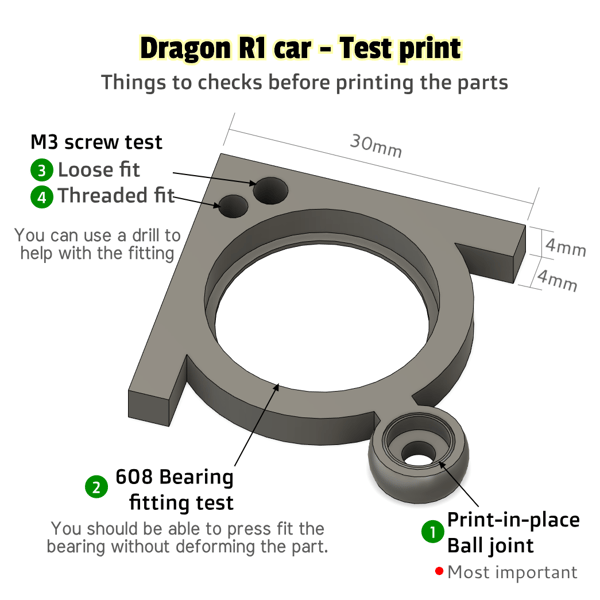

3D printing settings

• Cura 5.0 above is the recommended slicer for this model. Rafts and Supports are generally better in Cura.
• The 3mf files were generated with Cura Slicer. STLs also provided for other slicers.
• The body requires tree supports when using "touch build plate only" support option. Please check the print preview before printing. It is better to print the two parts separately.
