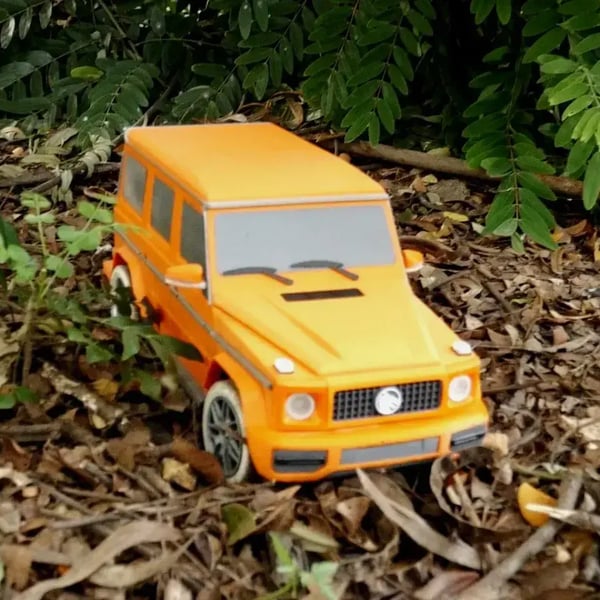

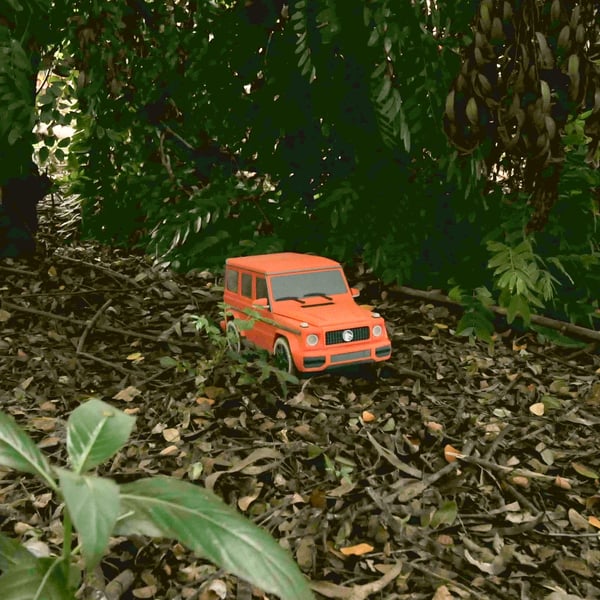

G wagon - True scale model

A Performance RC model with offroad capabilities. The chassis has ~150 printed parts.

Join our Discord

Check Our Youtube Video

https://www.youtube.com/watch?v=W5CV9I5o9b8

Features:

- Accurate 1/12 Scale

- Fully 3D printed (including shock absorbers)

- AWD power transmission

- Open Differentials

- Independent front suspension (IFS)

- 30kmph Top speed

- 100% slope climbing

Complete parts list

CHASSIS ASSEMBLY:

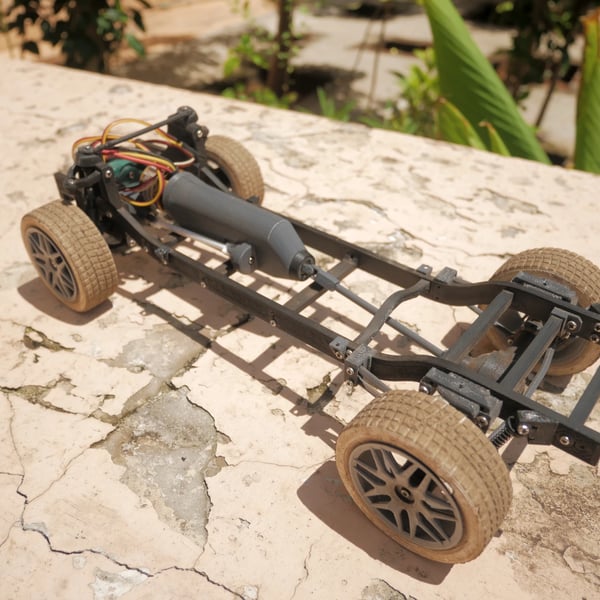

- Part 1 - Chassis frame & Rear suspension assembly

https://www.youtube.com/watch?v=3sX3j1g-W7k

- Part 2 - Motor drive assembly

https://www.youtube.com/watch?v=OycBHnFQ_IQ

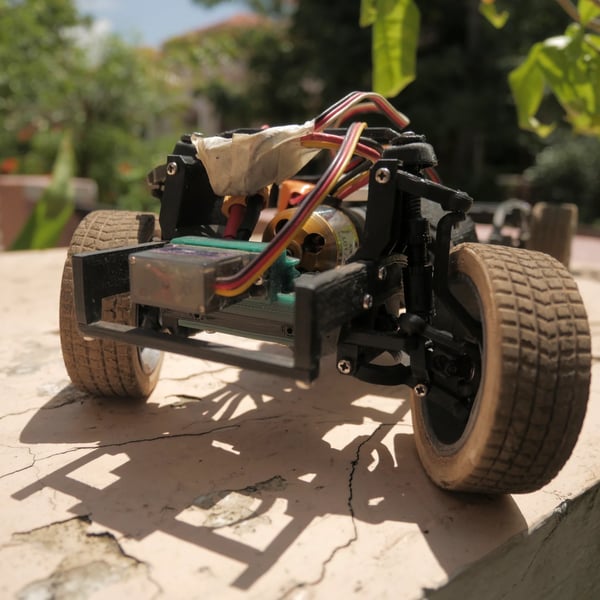

- Part 3 - Steering and Front differential assembly

https://www.youtube.com/watch?v=me7LyPrq4uA

- Part 4 - Front suspension & final assembly

https://www.youtube.com/watch?v=ugaXeY6qLCo

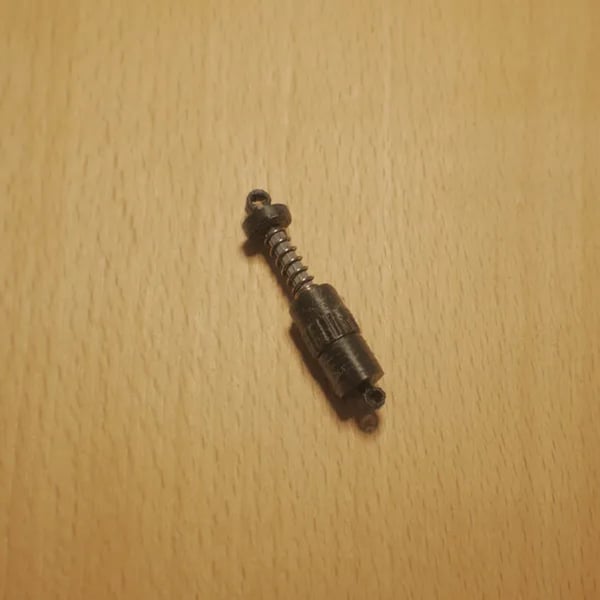

- Shock Absorbers:

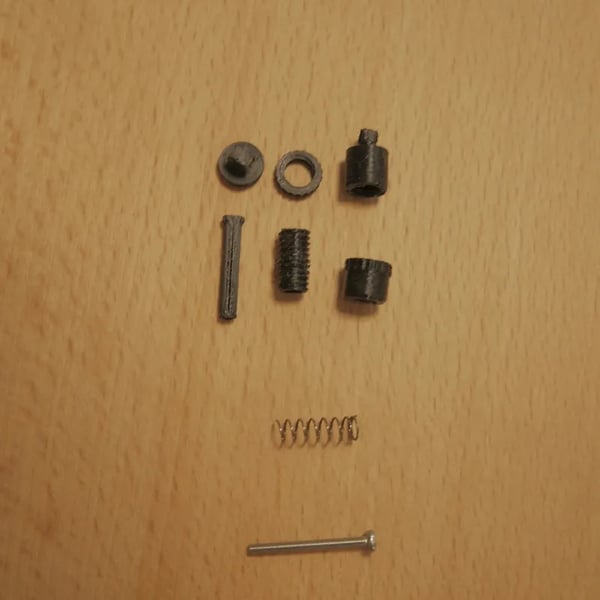

The 3d printed shock absorbers need a M2 20mm screw and a pen spring.

Body Assembly:

https://www.youtube.com/watch?v=E4CGuJMLb_Y

Notes:

- With a 3S battery, this model can reach upto 30kmph! before the gears start melting. So it is recommended to use 2S battery and low KV (1000-1400) motor. Lubrication recommended for the gears.

Body Assembly:

https://youtu.be/E4CGuJMLb_Y?feature=shared

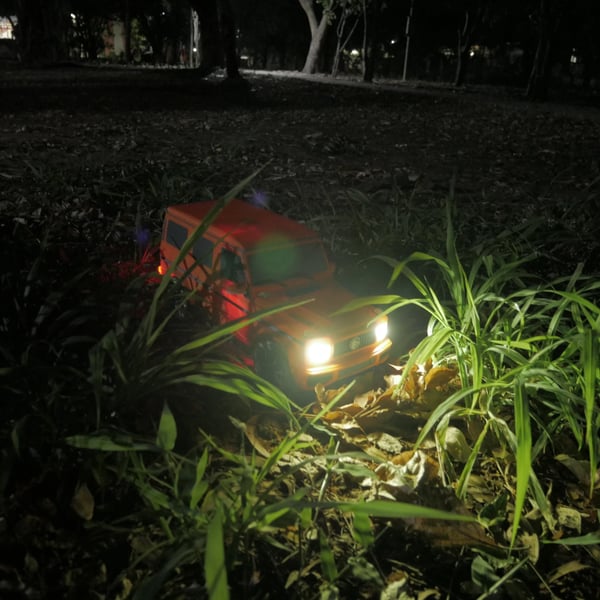

Realistic Lights and Sounds were made possible by TheDIYGuy999 - Recommended for experienced users, This adds a new level of realism to your model

Available here: https://github.com/TheDIYGuy999/Rc_Engine_Sound_ESP32

Looking forward to your feedback and suggestions ;)

Notes:

- The Files are named with the recommended colours, feel free to change the colours as per you preferences

- Cura 5.0 above is the recommended slicer for this model. Rafts and Supports are generally better in Cura.

- The 3mf files were generated with Cura Slicer.

- The provided files have support blockers which may open as normal models in other slicers. You may have to manually assign them as support blockers.

Car Body design derived from Shaylesh Roy's model, available at Grabcad

3D printing settings

• The Files are named with the recommended colours, feel free to - change the colours as per you preferences
• Cura 5.0 above is the recommended slicer for this model. Rafts and Supports are generally better in Cura.
• The 3mf files were generated with Cura Slicer.
• The provided files have support blockers which may open as - normal models in other slicers. You may have to manually assign them as support blockers.
