QUICK Support top-z distance calibration test

inovitek_3d

PRINT NOW

Uploaded on September 02, 2026

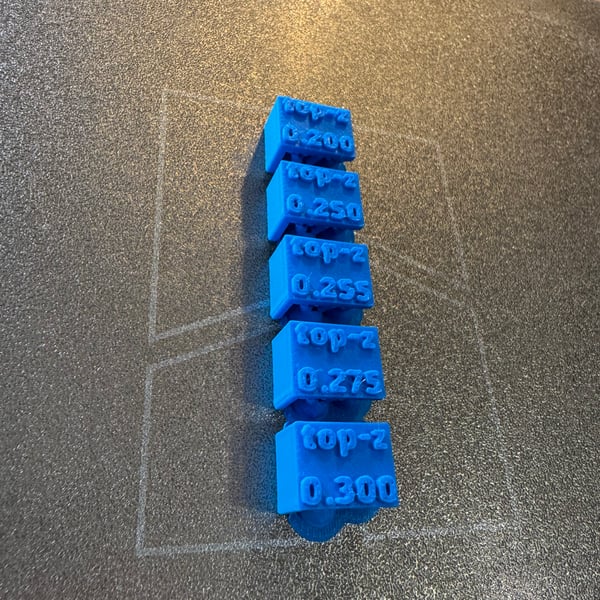

This model tests the following Z-distances:

Layer Height: 0.2mm (Required for this specific test)

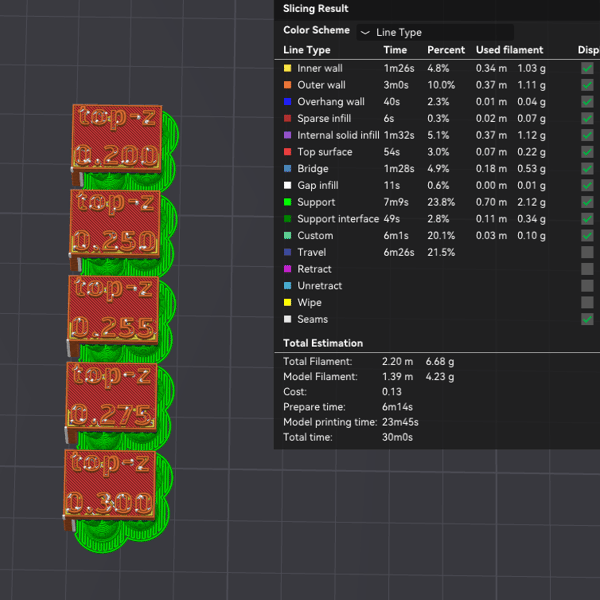

Ready-to-Print: The included .3mf file comes with all the necessary support settings and modifiers already configured. Just slice and print!

Print the model using the provided .3mf profile.
Once cooled, carefully snap off the support tabs for each section.
Observe how easily the support breaks away and inspect the surface quality of the overhang left behind.
The Goal: Choose the tightest Z-distance (closest to 0.20mm) that still breaks away cleanly without fusing to the main body or requiring excessive force. Update your slicer's "Support Z Distance" setting to match your winning result!
