RGB busy lamp slab

{"free",    "FREE",    "I'm around",     /* green  */},
{"focus",   "FOCUS",   "Heads down",     /* amber  */},
{"meeting", "MEETING", "Do not disturb", /* red    */},
{"away",    "AWAY",    "Stepped out",    /* dim blue */},

// Desk busy lamp for Waveshare ESP32-C6-LCD-1.47 (Amazon B0DK5J6LX3).
// LCD-only slab — no touch, no IMU. 172×320 ST7789 + GPIO8 RGB + BOOT GPIO9.
//
// States: FREE (green) · FOCUS (amber) · MEETING (red) · AWAY (dim blue)
// Huge stacked word + short subtitle. Onboard WS2812 matches the color.
// Last state is stored in Preferences ("busylamp" / "state").
// Orientation is stored as "land" (0 portrait 172×320, 1 landscape 320×172).
//
// Serial 115200: free | focus | meeting | away | status | help | rotate
// Short BOOT (GPIO9): cycle states. Hold BOOT ~0.7s: portrait / landscape.
//
// Optional Wi-Fi — leave SSID empty to stay offline.
// To enable HTTP, replace the empty strings with:
//   #define WIFI_SSID "YOUR_WIFI_SSID_HERE"
//   #define WIFI_PASSWORD "YOUR_WIFI_PASSWORD_HERE"
// Then POST /state?set=focus   (free|focus|meeting|away)
//

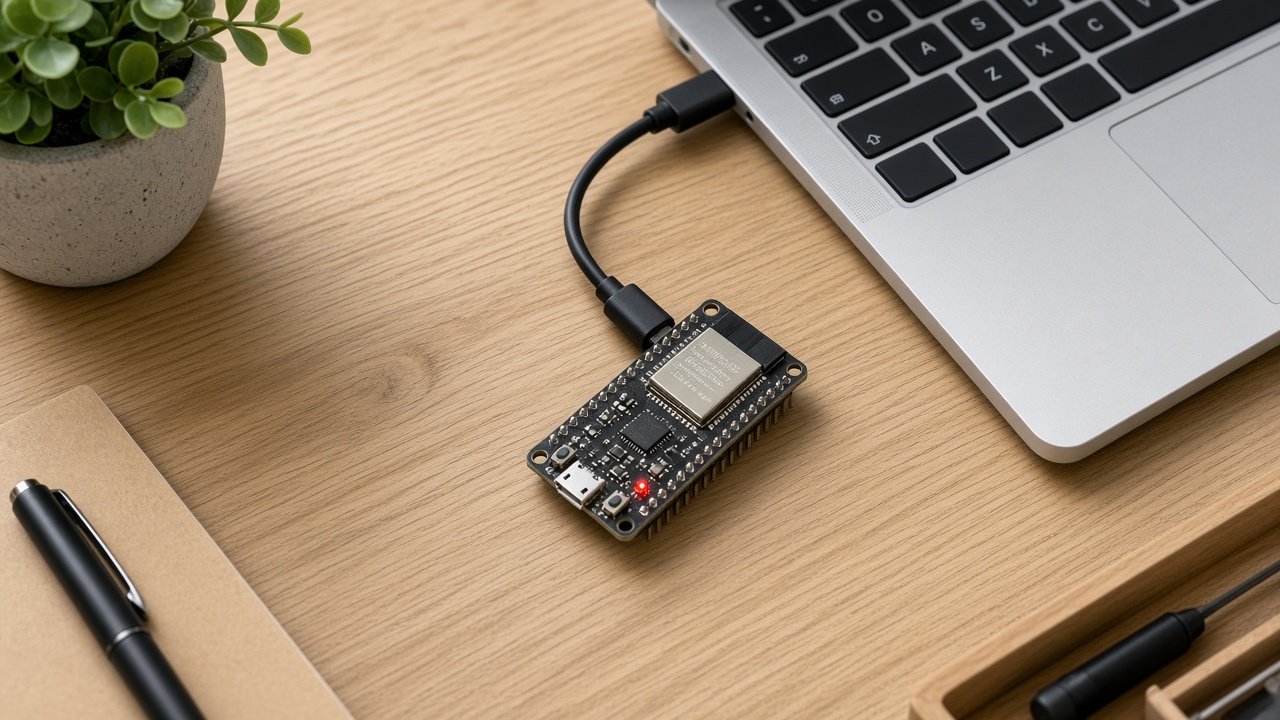

// Arduino IDE: ESP32C6 Dev Module, USB CDC On Boot.
// Backlight stays at 50% (Waveshare heat-spot warning).
// The browser sim is board-sketches/rgb-busy-lamp/sim/index.html
//   python .cursor/skills/board-firmware-sim/scripts/serve_sim.py board-sketches/rgb-busy-lamp

#include <Arduino.h>
#include <Arduino_GFX_Library.h>
#include <Adafruit_NeoPixel.h>
#include <Preferences.h>
#include <WiFi.h>
#include <WebServer.h>

#include "../../../shared/c6_slab_pins.h"

#ifndef WIFI_SSID
#define WIFI_SSID ""   // YOUR_WIFI_SSID_HERE
#endif
#ifndef WIFI_PASSWORD
#define WIFI_PASSWORD ""  // YOUR_WIFI_PASSWORD_HERE
#endif

#define BOOT_LONG_MS 700UL

enum LampState : uint8_t { ST_FREE = 0, ST_FOCUS, ST_MEETING, ST_AWAY, ST_COUNT };

struct LampLook {
  const char *id;
  const char *word;
  const char *sub;
  uint8_t led_r, led_g, led_b;
  uint8_t bg_r, bg_g, bg_b;
  uint8_t fg_r, fg_g, fg_b;
};

// Keep these RGB triples in sync with sim/index.html
static const LampLook LOOKS[ST_COUNT] = {
  {"free",    "FREE",    "I'm around",     0, 220,  70,   8, 32, 16,   72, 255, 128},
  {"focus",   "FOCUS",   "Heads down",   255, 160,   0,  40, 22,  4,  255, 196,  64},
  {"meeting", "MEETING", "Do not disturb", 220, 20, 28,  40,  6, 10,  255,  88,  88},
  {"away",    "AWAY",    "Stepped out",   12,  28,  88,   6, 12, 32,   96, 140, 220},
};

static Arduino_DataBus *bus = new Arduino_ESP32SPI(
    C6_LCD_DC_PIN, C6_LCD_CS_PIN, C6_LCD_SCLK_PIN, C6_LCD_MOSI_PIN, GFX_NOT_DEFINED);
static Arduino_GFX *gfx = new Arduino_ST7789(
    bus, C6_LCD_RST_PIN, 0 /* rotation */, true /* IPS */,
    C6_LCD_W, C6_LCD_H, 34, 0, 34, 0);

static Adafruit_NeoPixel rgb(1, C6_RGB_PIN, NEO_GRB + NEO_KHZ800);
static Preferences prefs;
static WebServer server(80);

static LampState g_state = ST_FREE;
static bool g_landscape = false;
static bool g_wifi_up = false;
static bool g_bootDown = false;
static bool g_bootLong = false;
static uint32_t g_bootDownAt = 0;
static String g_line;

static int sw() { return gfx->width(); }
static int sh() { return gfx->height(); }

static void applyOrient() { gfx->setRotation(g_landscape ? 1 : 0); }

static void persistOrient() { prefs.putUChar("land", g_landscape ? 1 : 0); }

static uint16_t rgb565(uint8_t r, uint8_t g, uint8_t b) {
  return (uint16_t)(((r & 0xF8) << 8) | ((g & 0xFC) << 3) | (b >> 3));
}

static int wordTextSize(const char *word) {
  const int n = (int)strlen(word);
  if (g_landscape) {
    if (n >= 7) return 7;
    if (n >= 5) return 9;
    return 11;
  }
  if (n >= 7) return 4;
  if (n >= 5) return 6;
  return 8;
}

static void drawStackedWord(const char *word, uint16_t color, int size, int y0) {
  const int cw = 6 * size;
  const int ch = 8 * size;
  const int gap = 2;
  gfx->setTextSize(size);
  gfx->setTextColor(color);
  for (int i = 0; word[i]; i++) {
    const int x = (sw() - cw) / 2;
    const int y = y0 + i * (ch + gap);
    gfx->setCursor(x, y);
    char glyph[2] = {word[i], 0};
    gfx->print(glyph);
  }
}

static void drawHWord(const char *word, uint16_t color, int size, int y) {
  const int tw = (int)strlen(word) * 6 * size;
  gfx->setTextSize(size);
  gfx->setTextColor(color);
  gfx->setCursor((sw() - tw) / 2, y);
  gfx->print(word);
}

static void drawScreen() {
  const LampLook &L = LOOKS[g_state];
  const uint16_t bg = rgb565(L.bg_r, L.bg_g, L.bg_b);
  const uint16_t fg = rgb565(L.fg_r, L.fg_g, L.fg_b);
  const uint16_t dim = rgb565((L.fg_r * 2) / 5, (L.fg_g * 2) / 5, (L.fg_b * 2) / 5);

  gfx->fillScreen(bg);
  gfx->fillRect(0, 0, sw(), 8, fg);
  gfx->fillRect(0, sh() - 8, sw(), 8, fg);
  gfx->fillRect(0, 8, 3, sh() - 16, dim);
  gfx->fillRect(sw() - 3, 8, 3, sh() - 16, dim);

  const int size = wordTextSize(L.word);
  const int n = (int)strlen(L.word);
  const int ch = 8 * size;
  const int gap = 2;
  const int subSize = g_landscape ? 3 : 2;
  const int subW = (int)strlen(L.sub) * 6 * subSize;

  if (g_landscape) {
    const int wordH = ch;
    const int total = wordH + 12 + 8 * subSize;
    int y0 = (sh() - total) / 2;
    if (y0 < 16) y0 = 16;
    drawHWord(L.word, fg, size, y0);
    gfx->setTextSize(subSize);
    gfx->setTextColor(fg);
    gfx->setCursor((sw() - subW) / 2, y0 + wordH + 12);
    gfx->print(L.sub);
  } else {
    const int stackH = n * ch + (n - 1) * gap;
    const int total = stackH + 18 + 8 * subSize;
    int y0 = (sh() - total) / 2;
    if (y0 < 16) y0 = 16;
    drawStackedWord(L.word, fg, size, y0);
    gfx->setTextSize(subSize);
    gfx->setTextColor(fg);
    gfx->setCursor((sw() - subW) / 2, y0 + stackH + 12);
    gfx->print(L.sub);
  }
}

static void setLampLed() {
  const LampLook &L = LOOKS[g_state];
  rgb.setPixelColor(0, rgb.Color(L.led_r, L.led_g, L.led_b));
  rgb.show();
}

static void persistState() {
  prefs.putUChar("state", (uint8_t)g_state);
}

static void applyState(LampState next, bool save) {
  if (next >= ST_COUNT) next = ST_FREE;
  g_state = next;
  drawScreen();
  setLampLed();
  if (save) persistState();
  Serial.printf("state %s\n", LOOKS[g_state].id);
}

static bool applyStateName(const String &name) {
  for (uint8_t i = 0; i < ST_COUNT; i++) {
    if (name.equalsIgnoreCase(LOOKS[i].id)) {
      applyState((LampState)i, true);
      return true;
    }
  }
  return false;
}

static void cycleState() {
  applyState((LampState)((g_state + 1) % ST_COUNT), true);
}

static void toggleOrient() {
  g_landscape = !g_landscape;
  applyOrient();
  persistOrient();
  drawScreen();
  Serial.printf("orient %s\n", g_landscape ? "landscape" : "portrait");
}

static void printHelp() {
  Serial.println(F("rgb-busy-lamp — desk lamp on ESP32-C6-LCD-1.47"));
  Serial.println(F("  free | focus | meeting | away"));
  Serial.println(F("  status"));
  Serial.println(F("  rotate  portrait <-> landscape"));
  Serial.println(F("  help"));
  Serial.println(F("BOOT short = cycle FREE → FOCUS → MEETING → AWAY"));
  Serial.println(F("Hold BOOT = rotate. RGB GPIO8 matches the slab color"));
  if (WIFI_SSID[0]) {
    Serial.println(F("POST /state?set=focus   (also GET /)"));
  } else {
    Serial.println(F("Wi-Fi off — set WIFI_SSID to enable POST /state?set="));
  }
}

static void printStatus() {
  Serial.printf("state: %s\n", LOOKS[g_state].id);
  Serial.printf("orient: %s  %dx%d\n", g_landscape ? "landscape" : "portrait", sw(), sh());
  Serial.printf("word: %s — %s\n", LOOKS[g_state].word, LOOKS[g_state].sub);
  Serial.printf("rgb: GPIO%d  %u,%u,%u\n", C6_RGB_PIN,
                LOOKS[g_state].led_r, LOOKS[g_state].led_g, LOOKS[g_state].led_b);
  Serial.printf("boot: GPIO%d  backlight: %u/255\n", C6_BOOT_PIN, C6_BL_PWM);
  if (g_wifi_up) {
    Serial.printf("wifi: %s  http://%s/\n", WiFi.SSID().c_str(),
                  WiFi.localIP().toString().c_str());
  } else if (WIFI_SSID[0]) {
    Serial.println(F("wifi: configured, not connected"));
  } else {
    Serial.println(F("wifi: offline (empty SSID)"));
  }
}

static void handleSerialLine(String line) {
  line.trim();
  line.toLowerCase();
  if (!line.length()) return;
  if (line == "help" || line == "?") {
    printHelp();
    return;
  }
  if (line == "status") {
    printStatus();
    return;
  }
  if (line == "rotate" || line == "orient") {
    toggleOrient();
    return;
  }
  if (applyStateName(line)) return;
  Serial.print(F("unknown: "));
  Serial.println(line);
  Serial.println(F("try: help"));
}

static void pollSerial() {
  while (Serial.available()) {
    char c = (char)Serial.read();
    if (c == '\r') continue;
    if (c == '\n') {
      handleSerialLine(g_line);
      g_line = "";
    } else if (g_line.length() < 48) {
      g_line += c;
    }
  }
}

static void pollBoot() {
  const bool down = digitalRead(C6_BOOT_PIN) == LOW;
  const uint32_t now = millis();
  if (down && !g_bootDown) {
    g_bootDown = true;
    g_bootLong = false;
    g_bootDownAt = now;
  }
  if (down && g_bootDown && !g_bootLong && (now - g_bootDownAt) >= BOOT_LONG_MS) {
    g_bootLong = true;
    toggleOrient();
  }
  if (!down && g_bootDown) {
    if (!g_bootLong && (now - g_bootDownAt) > 40) {
      cycleState();
    }
    g_bootDown = false;
  }
}

static void handleStateHttp() {
  if (!server.hasArg("set")) {
    server.send(400, "text/plain", "missing set");
    return;
  }
  if (applyStateName(server.arg("set"))) {
    server.send(200, "text/plain", LOOKS[g_state].id);
  } else {
    server.send(400, "text/plain", "unknown state");
  }
}

static void handleRootHttp() {
  String html;
  html.reserve(720);
  html += F("<!doctype html><meta name=viewport content='width=device-width,initial-scale=1'>");
  html += F("<title>busy lamp</title><style>");
  html += F("body{font-family:system-ui;background:#111;color:#eee;padding:24px}");
  html += F("button{display:block;width:100%;margin:8px 0;padding:14px;font-size:18px;border:0;border-radius:10px}");
  html += F("</style><h1>");
  html += LOOKS[g_state].word;
  html += F("</h1><p>");
  html += LOOKS[g_state].sub;
  html += F("</p>");
  for (uint8_t i = 0; i < ST_COUNT; i++) {
    html += F("<button style='background:rgb(");
    html += String(LOOKS[i].led_r);
    html += ',';
    html += String(LOOKS[i].led_g);
    html += ',';
    html += String(LOOKS[i].led_b);
    html += F(");color:#111' onclick=\"fetch('/state?set=");
    html += LOOKS[i].id;
    html += F("',{method:'POST'}).then(()=>location.reload())\">");
    html += LOOKS[i].word;
    html += F("</button>");
  }
  server.send(200, "text/html", html);
}

static void startWifi() {
  if (!WIFI_SSID[0]) {
    Serial.println(F("wifi: skipped (empty SSID)"));
    return;
  }
  WiFi.mode(WIFI_STA);
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  Serial.printf("wifi: connecting to %s\n", WIFI_SSID);
  const uint32_t start = millis();
  while (WiFi.status() != WL_CONNECTED && millis() - start < 8000) {
    delay(200);
    Serial.print('.');
  }
  Serial.println();
  if (WiFi.status() != WL_CONNECTED) {
    Serial.println(F("wifi: give up, running offline"));
    WiFi.disconnect(true);
    return;
  }
  g_wifi_up = true;
  server.on("/", HTTP_GET, handleRootHttp);
  server.on("/state", HTTP_POST, handleStateHttp);
  server.on("/state", HTTP_GET, handleStateHttp);
  server.begin();
  Serial.printf("wifi: http://%s/  POST /state?set=focus\n",
                WiFi.localIP().toString().c_str());
}

void setup() {
  Serial.begin(115200);
  delay(200);
  Serial.println();
  Serial.println(F("rgb-busy-lamp"));

  pinMode(C6_BOOT_PIN, INPUT_PULLUP);
  pinMode(C6_LCD_BL_PIN, OUTPUT);
  analogWrite(C6_LCD_BL_PIN, C6_BL_PWM);

  if (!gfx->begin()) {
    Serial.println(F("LCD init failed"));
  }

  rgb.begin();
  rgb.clear();
  rgb.show();

  prefs.begin("busylamp", false);
  g_landscape = prefs.getUChar("land", 0) != 0;
  applyOrient();
  uint8_t stored = prefs.getUChar("state", ST_FREE);
  if (stored >= ST_COUNT) stored = ST_FREE;
  applyState((LampState)stored, false);

  startWifi();
  printHelp();
}

void loop() {
  pollBoot();
  pollSerial();
  if (g_wifi_up) server.handleClient();
  delay(10);
}
